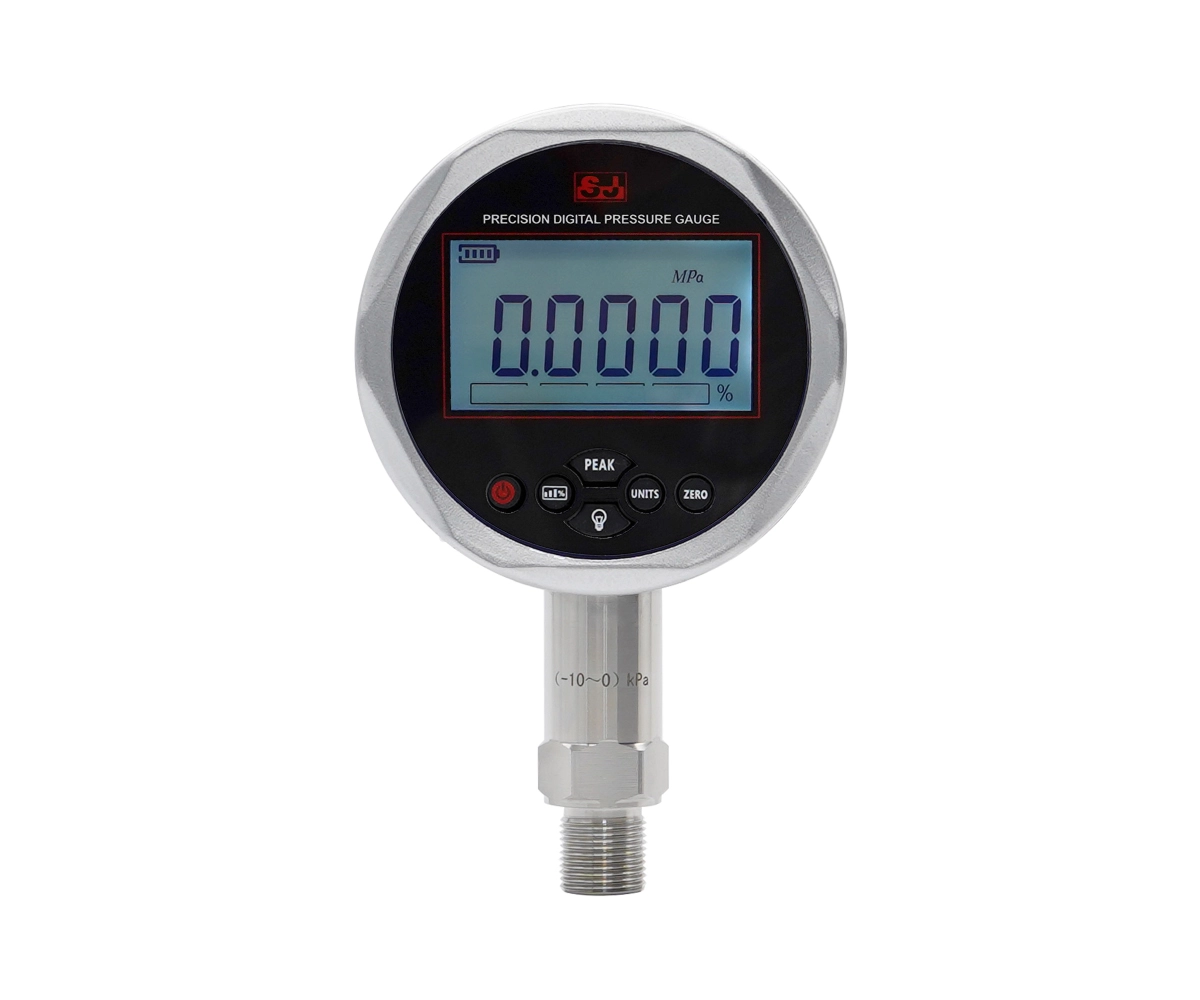

Digital Pressure Gauge, High Precision
Model: MXP
Description：
- Accuracy up to 0.025% F.S., ideal for instrument calibration
- Regulated by the equipment from international, industry-leading calibration companies: Mensor and GE
- Built-in lithium battery, which allows charging during use (Micro-B)
- Responsive after-sales service / Customizable / High quality / One-year warranty
- Products will be customized to your requirements, so product images are for reference.
- Read more: Digital vs Analog Pressure Gauges
Download file
Product Specification
※For detailed specifications or operating instructions, please refer to the“Download file” section above.
Swipe left / right for more info| Nominal size | 4" |
|---|---|
| Scale ranges | 0 ... 40 kPa to 0 ... 100 MPa, or other equivalent units of pressure, vacuum or compound |
| Pressure units | kg/cm2, mH2O, kPa, mmHg, psi, bar, pa, MPa (Up to 8 units can be switched, if not specified, the engineer will select it according to the pressure range) |
| Accuracy | ±0.1% F.S., ±0.05% F.S., ±0.025% F.S. |
| Process connection | 304 SS 1/2, 1/8, 1/4, 3/8, 1/2 NPT, G |
| Case/Ring | Aluminum alloy nickel plating |
| Panel | PVC |
| Diaphragm | 316L SS |
| Medium temperature | -20℃ ... 60℃ |
| Display | 5.5 digits LCD, switchable backlight button |
| Response time | 20 ... 25 times/sec |
| Power supply | 14500 rechargeable lithium battery, Micro-B charging port |
| Weight | 1.5 kg (including the box and accessories) |
